五层框架结构旅馆设计(建筑设计和结构设计)

来源:56doc.com  资料编号:5D4675 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D4675
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

五层框架结构旅馆设计(建筑设计和结构设计)(包含任务书,开题报告,外文翻译,文献综述,17张图cad和计算书16000字)
摘    要
设计部分题目为绍兴市区某旅馆,包括建筑设计和结构设计两大部分。
该建筑为五层框架结构,建筑总高度为19.8米,总建筑面积约为10240平方米。

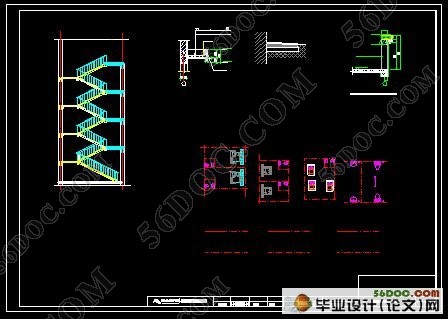

结构设计方面计算了一榀框架的重力荷载、计算了风荷载和横向水平地震作用及其内力、还计算了竖向恒载作用及其内力。内力计算完成后用PKPM进行了组合,根据最不利组合进行了梁和柱截面设计。除一榀框架外,还进行了板的设计、楼梯的设计以及基础的设计。
以上计算过程中,用PKPM进行了适当验算。
设计部分最终成图包括:

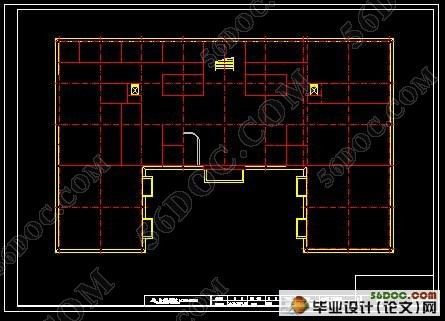

建筑施工图:底层平面图、屋面平面图、二层平面图、屋面平面图、正立面图和一个横剖面图。

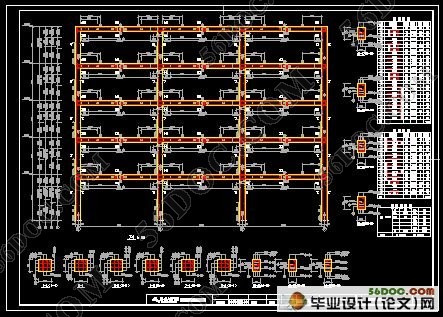

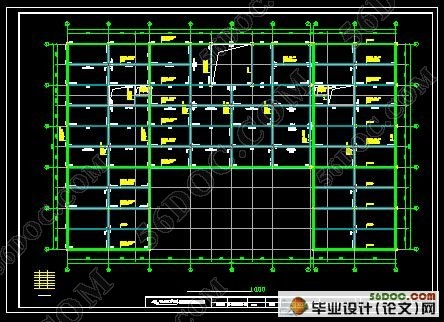

结构施工图:结构平面布置图、板配筋图、一榀框架配筋图、基础平面及配筋图。

关键词:框架结构  教学楼  建筑设计  结构设计  PKPM

Abstract
The title of this graduation project is the hotel in the city of Shaoxing, including architectural design and constructional design.
The frame construction of the architect is four floors, the total height of the architect is 19.8 meter and the total area is about 10240 square meters.
I calculate the gravity load of one roof truss, the wind load and the horizontal effect of earthquake and its internal force, calculate the vertical constant loading effect and its internal force. After the end of the calculation of internal force, I combine them with PKPM, and design the section of girder and columniation according to the worst combination. Besides the designation of one roof truss, I draw the designation of board, stair and the basic designation. I have made a check on the calculation above.
The final drawing of the design including:
 Architectural drawing: bottom plan, roofing plan, second floor plan, façade drawing and body section drawing.
Constructional drawing: Constructional floor plan, broad arrangement drawing, the drawing of one roof truss, basic plan and arrangement drawing.
Key words: frame construction; teaching building; architectural design;

1工程概况
工程名称:HOME旅馆
工程环境:绍兴市区
建筑类别:丙类
安全等级:二级
防火等级:二级
设计使用年限:50年
2自然条件
1 建筑场地地段情况(见附图),场地地势平坦。
2主导风向:夏季为东南风,其他季节我西北风,基本风压W0=0.45KN/m2
3雨雪条件:基本雪压:0.40KN/m2
4工程地质情况:
1)淤泥层:呈软塑~流塑状,局部分布。
2)粉质粘土:呈可塑~硬塑状态。分布于整个场地,主要成分粉粒及粘粒,含褐红色铁锰质氧化物网纹及灰白色高岭土团块。塑性指数Ip=12.21,液性指数IL=0.23,孔隙比e=0.521,容重r=22.50KN/m2,比重G=2.83。
3)卵石层:呈稍湿~中密状态。分布与整个场地,主要由卵石、砾石及中粗砂组成,少量泥质充填。卵石粒径20~70mm为主,约占50~55%,少量达100mm,砾石粒径5~15mm居多,约占25~30%,卵砾石均呈次园状,卵石空隙由粗砾砂充填。
4)各土层深度从地表起计算,平均深度为:1、淤泥层-1.20m;2、粉质粘土-2.90m;3、卵石层-2.90m以下。
5)地下水最高水位距地表0.30m。
6)各层土容许承载力f提供值:粉质粘性土fK=290kpa,卵石层fK=420kpa。
5抗震设防烈度:7度。
Ⅱ、框架结构设计计算
1荷载取值
柱网与层高:本工程采用柱距为8.0m的内廊式小柱网,底层层高4.5m,层高取3.6m
