二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)

来源:56doc.com  资料编号:5D22985 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D22985
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

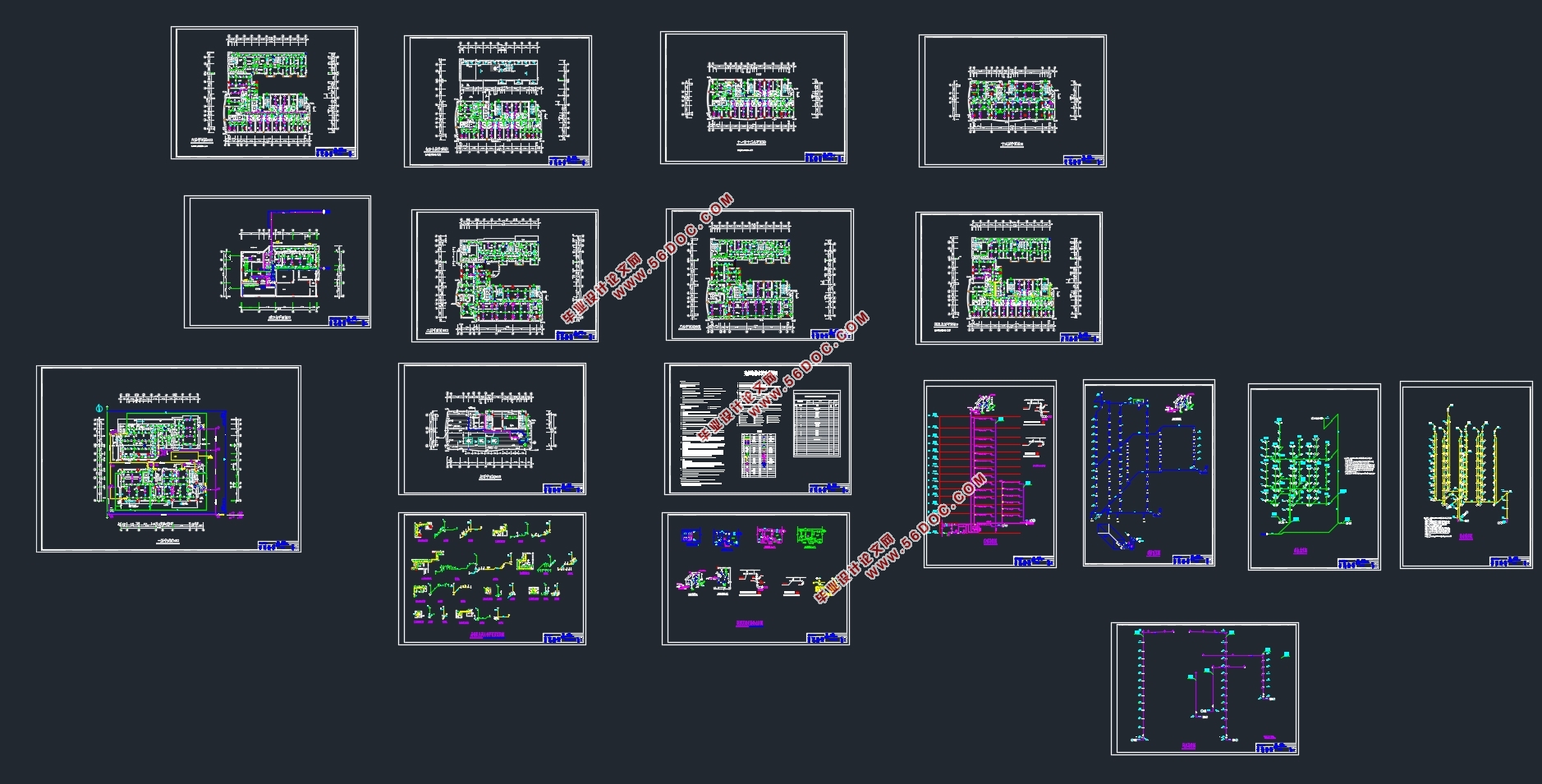

二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)(任务书,开题报告,外文翻译,论文说明书11000字,CAD图25张)
摘要
本设计为紫罗兰商旅宾馆给排水设计。框架式结构:总建筑面积约为12968m2,实际建筑高度为 49m,地上十三层,地下一层,地下一层为泵房,配电房;一层为大堂,售票厅,车库;二层为厨房,餐厅;三层KTV娱乐设施;四~十二层为宾馆;十三层为会议室;屋面设置水箱间。
设计主要为建筑内的给水排水工程以及与之配套的室内外部分给水排水工程的设计,具体包括:给水系统、消防系统、自动喷洒系统、排水系统以及雨水系统。
给水系统采用分区供水,从市政管网上接一根DN100的引入管,其中一层至五层为低区,由市政管网直接进行供水;六至十三层采用泵房给水水泵加压供水,屋顶消防水箱由生活水泵提供。泵房水池采用钢筋混凝土结构,置于地下室泵房。
建筑室内外排水采用污废合流方式,室外排水采用污废合流制,排入检查井后,经化粪池处理再排入市政污水管。卫生间采用多设立管形式,采用专用通气立管。地下室排水经排水沟汇集排至集水坑,经潜污泵提升排至检查井。本建筑采用内排水,选择重力半有压流系统,雨水经屋面雨水斗收集后由雨水管排至检查井再排入市政污水管。
本建筑为高层二类宾馆,按照高层民用建筑防火规范,消火栓宜布置在明显、经常有人出入且使用方便的地方,室外消火栓用水量20L/s,室内消火栓用水量20L/s,火灾延续时间2h,消防立管管径为DN100。在屋顶层设试验消火栓两个,每个室内消火栓箱内均设有远距离启动消防泵的按钮。其中屋顶水箱应贮存10min消防水量。
该建筑为中危险级建筑,采用湿式自动喷水灭火系统,由湿式报警装置,闭式喷头和管道等组成,喷淋系统设计流量20L/s,火灾延续时间1h,自喷立管管径为DN150。自喷系统设三组报警系统,在屋顶水箱处设有增压稳压设备,火灾发生初10min灭火用水由屋顶水箱提供。
关键词:给水系统,排水系统,消防系统,自喷系统,雨水系统
Abstract
The design for the drainage design Violet Business Hotel. Frame structure: The total construction area of approximately 1300m2, building a total height of 50m, on the ground thirteen, basement, ground floor of the pumping station, power distribution room; one for the lobby, ticket office, garage; two for kitchen, dining room; three KTV entertainment facilities; four - twelve layers of the hotel; thirteen for the conference room; set between the tank roof.
Designed mainly for water supply and drainage inside the building and its accompanying interior portion of water and engineering design, including: water supply system, fire fighting system, automatic sprinkler system, drainage system and rainwater systems.
Water supply system is partitioned, then introducing a DN100 pipe from the municipal pipe network, which is one to five low area, from the municipal water supply pipe network directly; six to thirteen water pumping station pumps using pressurized water, Roof fire water tank provided by the living water pump. Pool pump house reinforced concrete structures, pumping stations placed in the basement.
Indoor and outdoor drainage confluence manner using waste and sewage, waste and sewage confluence use outdoor drainage system, after checking into the well, the septic tank and then discharged into the municipal sewer. Toilet establishment tube form, using special ventilation riser. Basement drainage ditches pooled by row to the sump, the submersible sewage pump discharge to upgrade manholes. The building is the drain, half choose Gravity pressurized flow systems, rain water bucket after the roof rainwater is collected by the exhaust pipe to manholes and then discharged into the municipal sewer.
The two types of building high-rise hotels, high-rise buildings for fire protection in accordance hydrants should be arranged in a clear, easy to use and was often out of place, outdoor fire hydrant water 20L / s, fire hydrant water 20L / s, fire duration 2h , fire standpipe diameter is DN100. In the attic is located two test hydrant, fire hydrant box each have a remote start the fire pump buttons. Wherein the roof 10min fire water tank should be stored.
The building is the dangerous level building, wet automatic sprinkler system, the wet alarm system, closed nozzle and pipe and other components, sprinkler system design flow 20L / s, fire duration 1h, flowing riser pipe diameter DN150. Since the spray system set up three groups of alarm system, water tank on the roof with a booster regulator device at the beginning of the fire extinguishing 10min water provided by rooftop water tanks.
Key words: water supply systems, drainage systems, fire systems, from the spray system, rainwater systems

1、工程概况
本工程为紫罗兰商旅宾馆给排水设计,该宾馆为二类高层建筑,总建筑面积约1300平米,建筑层数:地下一层为泵房,配电房;一层为大堂,售票厅,车库;二层为厨房,餐厅;三层KTV娱乐设施;四~十二层为宾馆;十三层为会议室,本建筑高度为50米。
(1)给水水源
     本建筑从西侧的五一路市政管网取水,供水水压为0.28MPa,另外室外消防给水可通过市政管网直接提供。
(2)排水条件
建筑采用合流排水体制,污水经化粪池处理后排至市政排水管
  1.1给水方案
  1.1方案选择
方案一:屋顶高位水箱供水。
供水系统主要由贮水池、加压水泵、高位水箱和配水管网组成。高位水箱在水泵的供给下,自上而下进行供水。
优点:系统简单、水泵水量少、设备费用少、设备占地面积小、管理维修方便;出水稳定,供水安全可靠。
缺点:由于本建筑的用水均需要提升至屋顶最高层,水箱容积大,对建筑结果和抗震不利;水箱存在二次污染。
方案二:通过变频泵直接在泵房供水。
一层到五层由市政管网供水,六层至十三层为高区以及屋顶消防水箱采用变频水泵供水。
由于方案一的高位水箱供水,该建筑用水需提升至屋顶,水箱容积大,对建筑屋顶承受力及抗震能力不利,而且利用水箱自上而下供水存在二次污染。方案二直接采用水泵供水,避免了二次污染,并且供水稳定。水泵直接供水投资少,后期维护费也相对较少。
综上所述,选用方案二。


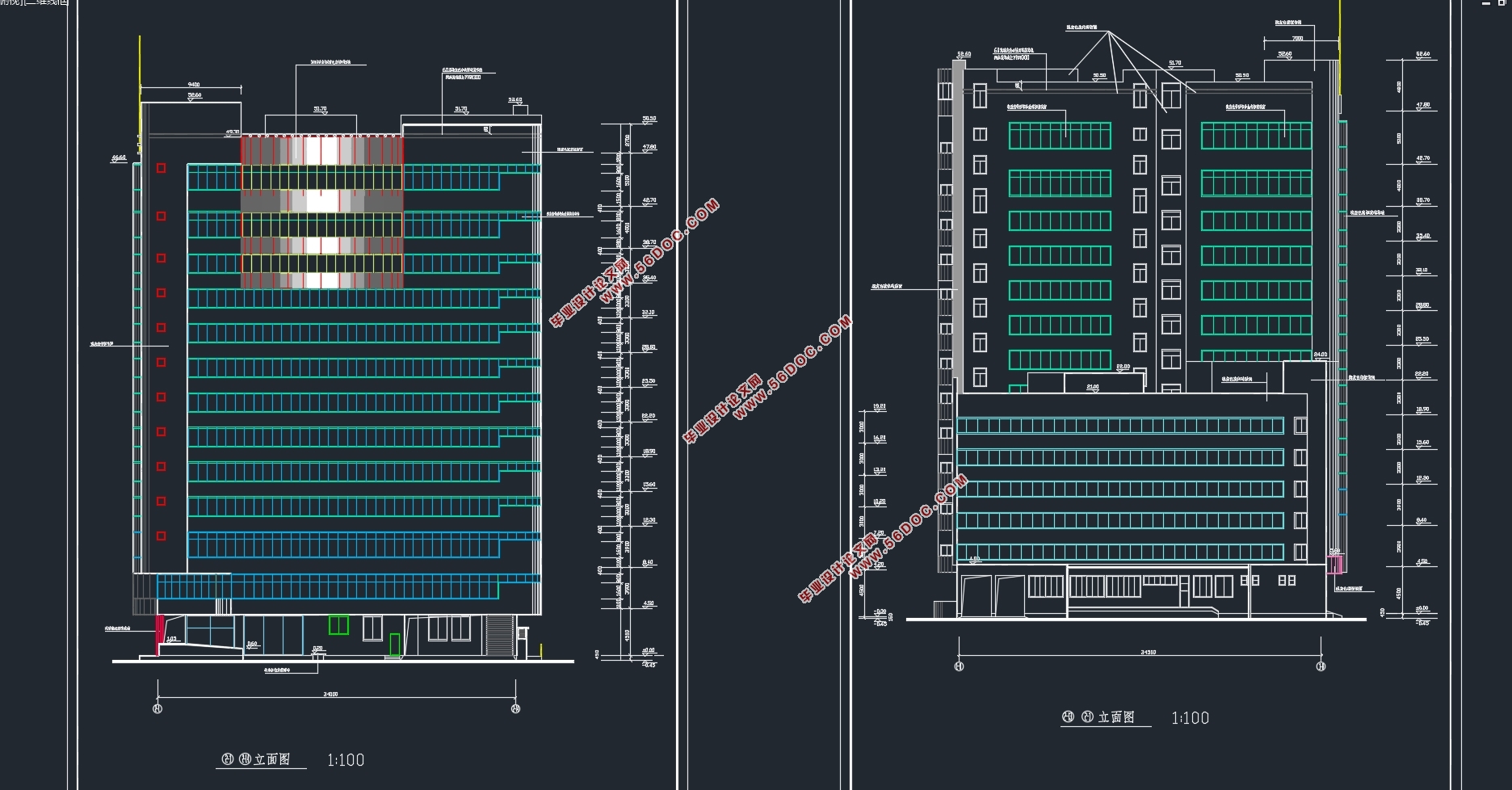

二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)
二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)
二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)
二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)
二类高层建筑紫罗兰商旅宾馆给排水设计(附CAD图)


目  录
第一章  设计说明书
任务说明............................................................1
  1.工程概况........................................................1
  2.设计依据........................................................1
  3.设计内容........................................................1
  4.图纸............................................................1
一、给水系统........................................................2
  1.1给水方案......................................................2
  1.1方案选择......................................................2
  1.2给水系统组成..................................................3
  1.3给水管道的布置与敷设..........................................3
二、消防系统........................................................4
  2.1室内消火栓系统................................................4
  2.1.1室内消火栓系统的选择........................................4
  2.1.2系统组成....................................................4
  2.1.3设备及构筑物................................................5
  2.1.4消火栓安装..................................................5
  2.2自动喷淋系统..................................................5
  2.2.1室内喷淋系统的选择..........................................5
  2.2.2系统组成....................................................5
  2.2.3喷头的选择与布置............................................6
  2.2.4设备及构筑物................................................6
三、排水系统........................................................6
  3.1系统选择......................................................6
  3.2系统组成......................................................6
  3.3排水管道安装要求..............................................6
四、雨水系统........................................................7
  4.1雨水系统选择..................................................7
  4.2雨水系统的组成................................................7
  4.3雨水系统管道敷设与布置........................................7
第二章  设计计算书
一、给水系统
  1.1  给水用水定额及时变化系数.....................................8
  1.2  最高日用水量计算.............................................8
  1.3  最高日最大时用水量计算.......................................8
  1.4  宾馆的生活给水设计秒流量计算.................................9
  1.5  JL-1给水管网水力计算.......................................10
  1.6  JZL-2给水管网水力计算......................................12
  1.7  给水泵的选择................................................14
二、消火系统........................................................14
  2.1 消防用水标准及相关系统概述......................................14
  2.1.1 消防用水量标准................................................14
  2.1.2  室外消防供水.................................................14
  2.1.3 室内消防供水分类..............................................14
  2.1.4  灭火器配置...................................................15
  2.2  消防系统计算...................................................15
  2.2.1  消火栓间距...................................................15
  2.2.2  水枪喷嘴处所需的水压.........................................15
  2.2.3  水枪喷嘴的出流量..........................................15
  2.2.4  水带阻力..................................................16
  2.2.5  消火栓口所需的水压........................................16
  2.2.6  校核......................................................16
  2.2.7 水力计算...................................................16
  2.2.8  消防水箱..................................................18
  2.2.9  消防贮水池................................................18
  2.2.10 减压孔板的计算............................................18
  2.2.11  水泵结合器...............................................18
  2.2.12 室外消火栓布置............................................18
三、自喷系统.......................................................18
  3.1 自喷系统基本概述.............................................18
  3.1.1 基本设计数据...............................................18
  3.1.2 喷头的选用与布置...........................................19
  3.2 水力计算.....................................................19
  3.2.1 喷头出水量.................................................19
  3.2.2 自喷最不利管段水力计算.....................................19
  3.2.3  校核......................................................21
  3.2.4 自喷系统水泵选择...........................................21
  3.2.5  喷淋水箱的确定............................................22
  3.2.6  校核最不利喷头............................................22
  3.2.7  局部增压设施..............................................23
  3.2.8  稳压泵的选择..............................................23
  3.2.9  减压孔板的计算............................................23
  3.2.10 水泵接合器................................................23
  3.2.11 消防贮水池及屋顶水箱......................................23
四、排水系统.......................................................24
  4.1 排水系统的设计与计算.........................................24
  4.2 其设计秒流量计算公式.........................................24
  4.3 排水系统相关计算草图及其水力计算.............................25
  4.4  室外平面污水水力计算........................................31
  4.5 化粪池容积计算...............................................32
  4.6 地下室集水井与排污泵计算.....................................33
五、雨水系统.......................................................33
  5.1 降雨强度.....................................................33
  5.2 雨水斗.......................................................34
  5.3 连接管.......................................................34
  5.4 悬吊管.......................................................34
  5.5 立管.........................................................34
  5.6 排出管.......................................................34
  5.7 埋地管.......................................................34
  5.8 室外平面雨水水力计算.........................................35
  参考文献.........................................................36
