某综合办公楼建筑给排水设计(附CAD图)

来源:56doc.com  资料编号:5D22994 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D22994
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

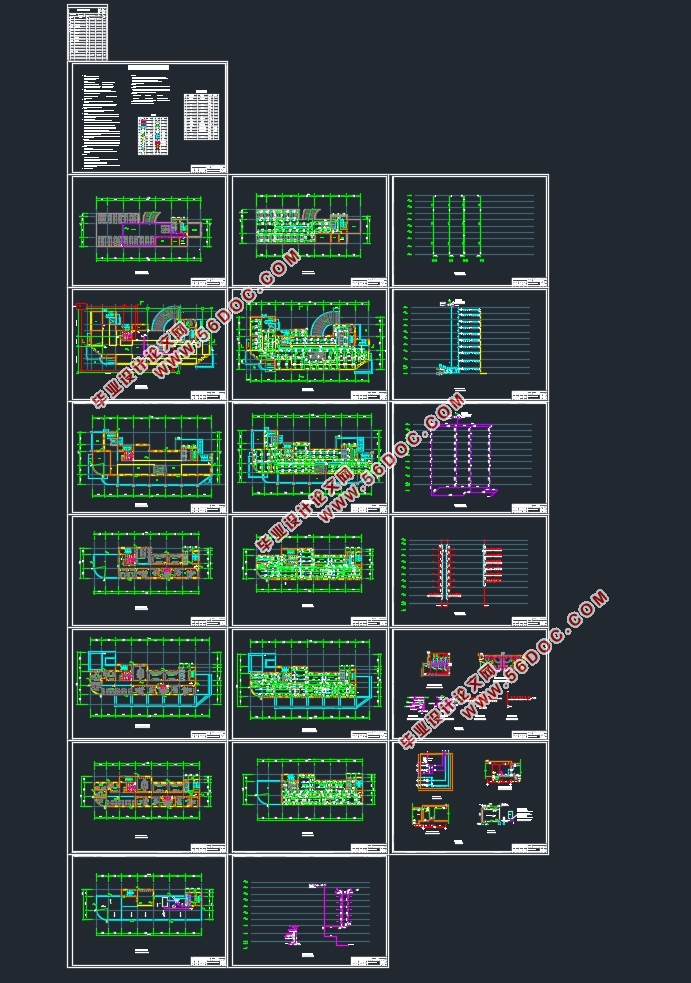

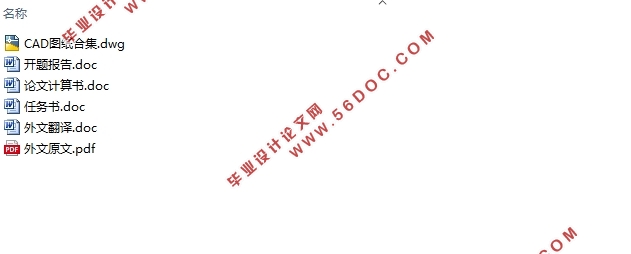

某综合办公楼建筑给排水设计(附CAD图)(任务书,开题报告,外文翻译,论文计算书13000字,CAD图20张)
摘    要
某办公大楼,地上9层,地下1层,建筑高31.45m;地上1层和2层为商场,主楼为办公用房。建筑物南侧大道上有市政干管,市政管网可以提供的常年资用水头均为0.25Mpa,市政管网不允许直接抽水。西侧大道有市政污水管道。
给水系统分区供水,从市政管网上接一根DN100的引入管,负一层至地上二层为市政管网直供,三至九层采用无负压变频供水设备加压供水。消防水池置于地下室泵房外侧,有效容积432立方。建筑室内排水采用污、废水分流制,室外排水采用污废合流制,排入检查井后,经化粪池处理再排入市政污水管。卫生间采用多设立管形式,采用专用通气立管,部分增设环形通气管。地下室排水经排水沟汇集排至集水坑,经潜污泵提升排至检查井。雨水经屋面雨水斗收集后由雨水管排至检查井。
该建筑为二类高层建筑,室外消火栓用水量20L/s,室内消火栓用水量30L/s,火灾延续时间2h。消火栓充实水柱高度12m,水龙带长度25m,水枪喷嘴流量5.16L/s,消防立管管径为DN100。在屋顶层设试验消火栓一个,每个室内消火栓箱内均设有远距离启动消防泵的按钮。
该建筑采用湿式自动喷水灭火系统,喷淋系统设计流量40L/s。报警阀设于地下室泵房内,各层均设水流指示器、末端试水装置和信号阀,其信号均送入消防控制中心进行处理。本工程的自动喷水灭火系统分1个区。选用箱泵一体化消防增压稳压设备(包含18立方米消防水箱)贮存火灾初期10min自动喷水灭火系统、室内消火栓系统用水量,初期灭火由水箱供水,后期灭火由地下室的消防水泵和喷淋泵供水。
关键词:综合楼  给水系统 消防系统 排水系统 消火栓系统

A comprehensive office building water supply and drainage design
Abstract
  A certain office building, the ground layer 9, 1 floor underground, the construction height o is 31.45 m; The ground layer 1 and layer 2 for market, the main building for office space. Amunicipal main avenue in the south building, municipal pipe network can be supported the  perennial water head are 0.25 Mpa, municipal pipe network does not allow direct pumping. The west road of municipal sewage pipe.
  Water supply system water supply division, from the municipal pipe network after the introduction of a DN100 tube, the negative a layer to the ground floor for the municipal pipe network for, three to nine layers by no negative pressure frequency conversion water supply equipment pressurized water supply. Fire pool in the basement pump room outside, the effective volume 432 cubic meters. Building indoor drainage using sewage, waste water diversion system, outdoor drainage using sewage waste confluence system, after checking well, into the septic tank treatment again into the municipal sewage pipe. Toilet USES special ventilation in the form of how to set up the tube, riser, part of the add circular vent. The drain converge to the basement drainage sump, the submersible sewage pump up to check well drained. The rain after roof rainwater hopper to collect from the storm sewer line to check well.
  The building is for 2 kinds of high-rise buildings, outdoor fire hydrant water 20 l/s, indoor fire hydrant water 30 l/s, fire duration 2 h. Fire hydrant enrich water column 12 m in height, hose length is 25 m, spray nozzle flow 5.16 L/s, fire riser pipe diameter for the DN100. In fire hydrant a floor or roof experiment, each indoor fire hydrant boxes have remote button to start the fire pump.
  The building adopts wet automatic sprinkler system, sprinkler system design flow, 40 l/s. Alarm valve is located in the basement pump room, each floor are set flow indicator, the end of the test device and the signal valve, the signals are sent to fire control center for processing. The project of automatic sprinkler system points 1 area. Selection box fire booster pump integration voltage equipment (including 18 cubic meters of water tank) storage fire early 10 min water automatic sprinkler system, indoor fire hydrant system, the early fire extinguishing by water tank water supply, the late fire from the basement of the fire pump and spray pump water supply.
Key words: Complex building  water supply system fire protection system drainage system, fire hydrant system

1.1工程概况
   某办公大楼,地上9层,地下1层,建筑高31.45m;地上1层和2层为商场,主楼为办公用房。建筑物南侧大道上有市政干管,市政管网可以提供的常年资用水头均为0.25Mpa,市政管网不允许直接抽水。西侧大道有市政污水管道。设计该建筑物给排水系统。
一、给水系统
1.1方案选择
本办公大楼,地上9层,地下1层,建筑高31.45m;地上1层和2层为商场,主楼为办公用房。本建筑的给水分区情况为,-1F~2F为低区,由市政管网直接供水;3F~9F为中区,加压供水。
2.1给水系统组成
建筑生活给水系统由下列部分组成:引入管,接户管,水表节点,入户管,管道系统,给水附件,升压和贮水设备。。选用无负压变频调速供水设备BW(1)OC16/2-0.50。
二、消防系统
2.1室内消火栓系统
2.1.1室内消火栓系统的选择
本楼总共高差为31.45米,《规范》中规定:高位消防水箱的设置高度应保证最不利点消火栓静水压力。当建筑物不超过100米时其最低压力应低于0.07Mpa 。否则,不应低于0.15Mpa。
考虑本工程实际情况,为满足最不利消火栓栓口处静水压力,从而采用箱泵一体化增压稳压给水设备,从第二层设减压稳压消火栓,以满足规范规定的水压要求。
本建筑为二类建筑,根据《高层民用建筑设计防火规范》要求:室内消火栓用水量取20L/s,水枪充实水柱取12m,最不利情况下最不利立管上同时出两股水柱,次不利立管上同时出两股水柱。消防立管管径为DN100。消火栓的布置在负一层和十层顶成平面环状,其它层成立面环状,形成立体环状。
消火栓布置在明显且经常有人出入的使用方便的地方,其间距不大于25m。为保证着火点着火时有两支水柱到达,总共设消火栓4根。
2.1.2系统组成
由消防水池,消火栓泵,消防管网,室内消火栓,消火栓箱,箱泵一体化消防增压稳压给水设备(包含18立方消防水箱)和水泵接合器组成。消火栓泵直接从消防贮水池吸水,屋顶消防水箱保证初期灭火的消防水量、水压要求。
2.2自动喷淋系统
2.2.1室内自动喷水灭火系统的选择
本建筑总的布置喷头数不超过800个,根据规范要求,湿式系统中一个报警阀组控制喷头数不宜超过800只。因此本建筑只需要设一个水力报警阀。整个自喷系统设一根立管。其具体的设计详见喷淋系统图。
2.2.2系统组成
喷淋系统由消防水池,喷淋泵,湿式报警阀组,管网,水流指示器,减压孔板,喷头和水泵接合器等组成。喷淋泵直接从消防水池吸水,屋顶消防水箱和增压稳压设备保证初期灭火的消防水量、水压要求,喷淋系统的消防水池、屋顶消防水箱分别与室内消火栓给水系统的消防水池、屋顶消防水箱共用。
三、室内排水系统
3.1系统选择
根据设计经验,室内排水采用污废分流制,鉴于化粪池内的生物处理效果并不理想,,因此该建筑的室外排水采用污废合流制。
由于该建筑是办公楼,雨水由雨水管道收集后直接排入市政雨水管网。
地下排水采用污水泵提升至室外城市污水管网。
消防电梯基坑设容积不小于2m3的集水井,排水泵的流量取大于10L/s。
3.2系统组成
该系统由卫生器具,排水管道,检查口,清扫口,室外排水管道,检查井,潜污泵,集水坑,化粪池等组成。通气系统为专用通气管。
四、雨水系统
4.1雨水排水系统的组成
雨水排水系统由雨水斗、连接管、悬吊管、立管、排出管、埋地干管和附属构筑物组成,采用重力半有压流系统。其中雨水斗采用87型单斗雨水斗。

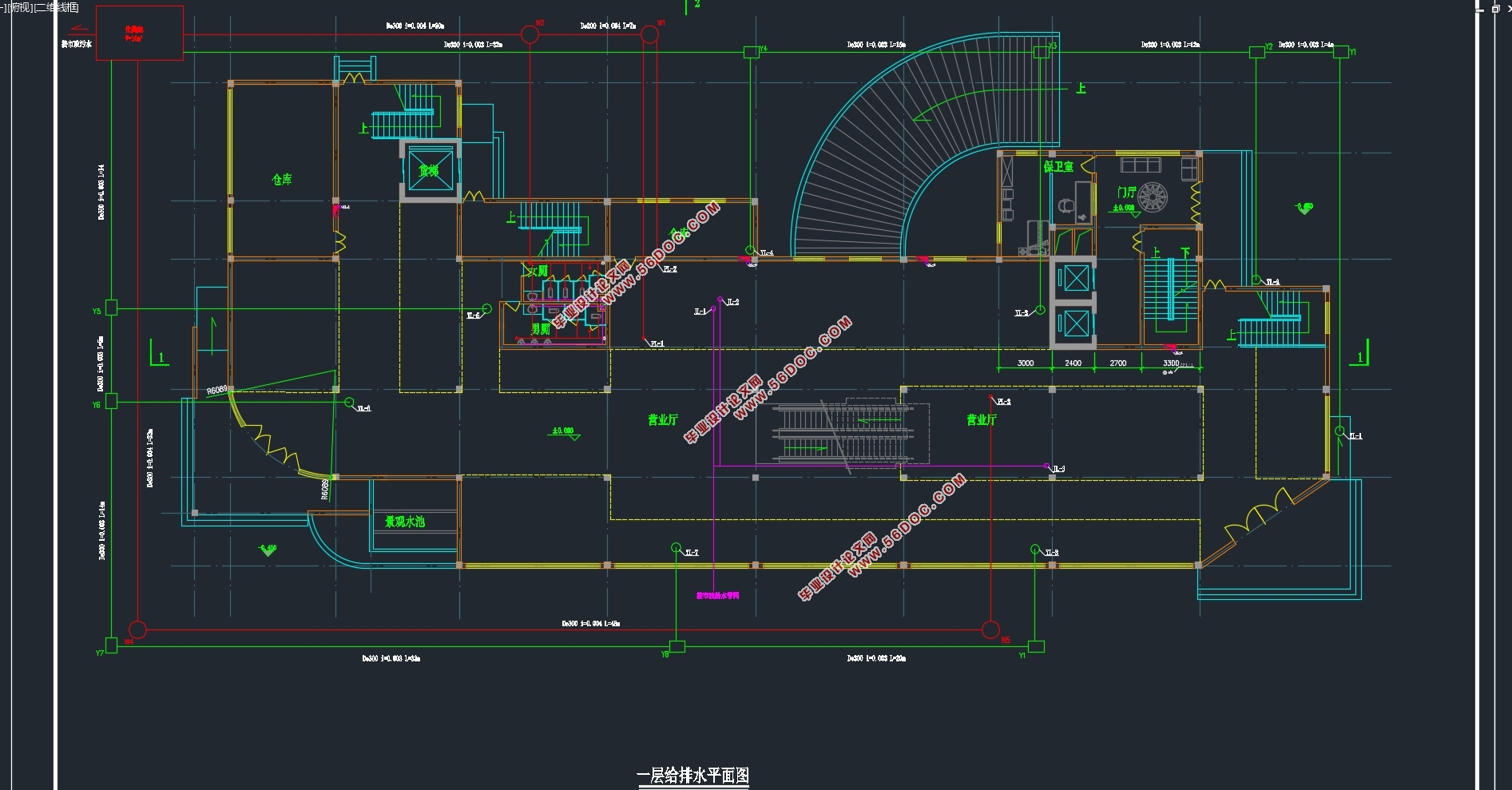

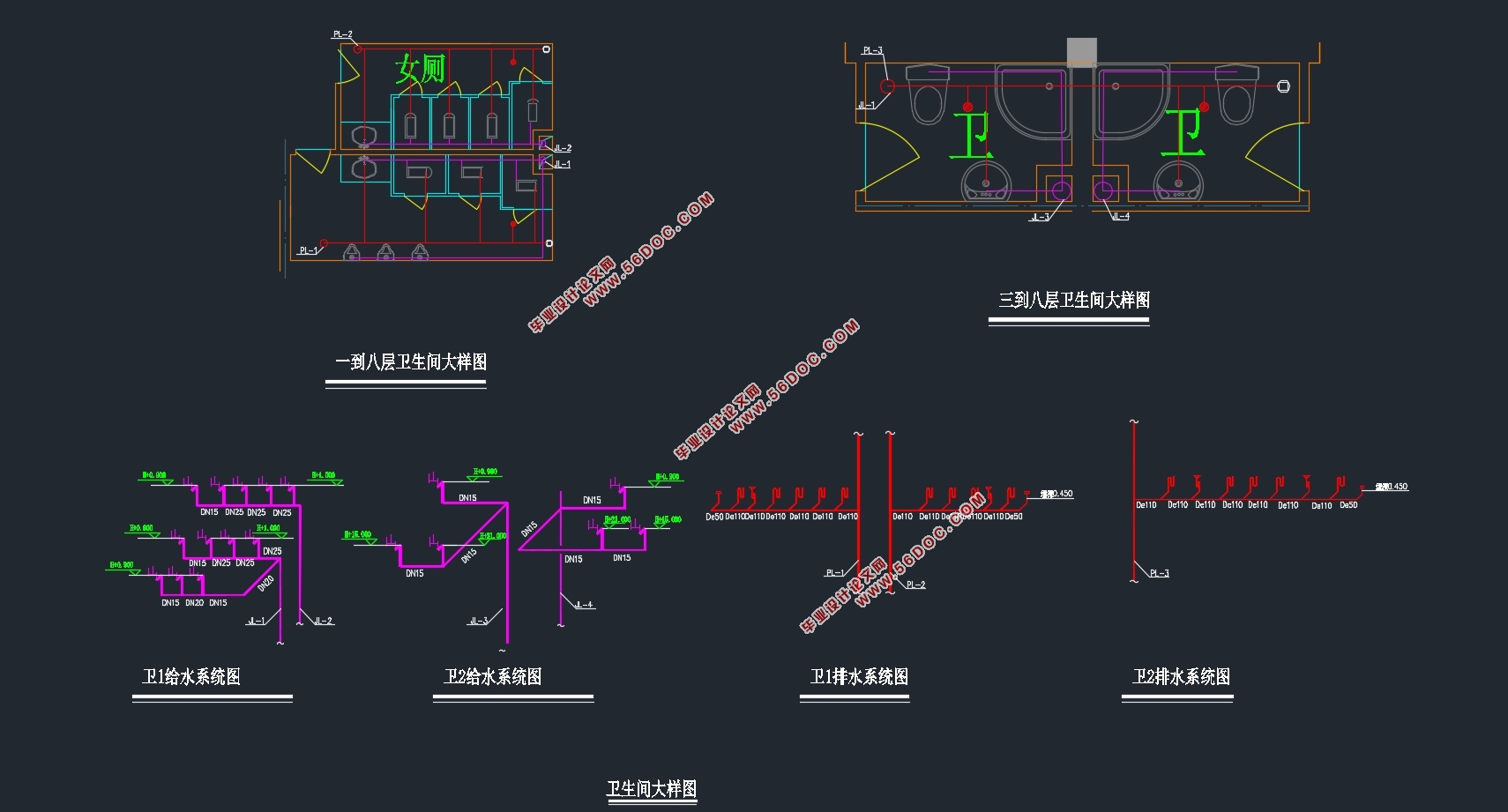

某综合办公楼建筑给排水设计(附CAD图)
某综合办公楼建筑给排水设计(附CAD图)
某综合办公楼建筑给排水设计(附CAD图)
某综合办公楼建筑给排水设计(附CAD图)
某综合办公楼建筑给排水设计(附CAD图)


目  录
第一章  任务书
一、设计任务书    1
1.1工程概况    1
1.2设计依据    1
1.3设计内容    2
1.4毕业设计(论文)图纸内容及张数    2
1.5设计进度计划    2
第二章  设计说明书
一、给水系统    3
    1.1方案选择    3
 1.2给水系统组成    3
二、消防系统    4
2.1室内消火栓系统    4
2.1.1室内消火栓系统的选择    4
2.1.2系统组成    5
2.1.3消火栓的安装    5
2.2自动喷淋系统    5
2.2.1室内自动喷水灭火系统的选择    5
2.2.2系统组成    6
2.2.3喷淋系统的安装    7
三、室内排水系统    7
3.1系统选择    7
3.2系统组成    8
四、雨水系统    9
4.1雨水排水系统的组成    9
第三章  设计计算书
一、给水系统计算    10
1.1生活用水量计算    10
1.2设计计算依据    10
1.3设计计算    11
1.4设计秒流量的确定    11
1.5水表的选择    11
1.6生活给水系统水力计算    12
1.6.1设计依据    12
1.6.2卫生间给水水力计算    14
1.6.3低区水力计算    16
1.6.4高区水力计算    17
1.7地下室生活水泵的选择    18
1.8低区给水系统所需压力校核    19
二、室内消火栓给水系统的计算    20
2.1消防水池    20
2.1.1消防水池的设置    20
2.1.2体积计算    20
2.2屋顶消防水箱    21
2.3消火栓保护半径    22
2.4消火栓布置间距    22
2.5消火栓的确定    23
2.6消火栓的水力计算    23
2.7水泵接合器选定    25
2.8消火栓减压计算    26
2.9室外消火栓的设置    26
三、自动喷水灭火系统    27
3.1自动喷淋灭火系统的基本数据    27
3.2管道与报警阀布置    27
3.3喷头的选用与布置    27
3.4系统的设计流量    27
3.5报警阀的压力损失    34
3.7选泵计算    34
3.8喷淋减压孔板计算    36
四、室内排水系统的设计与计算    37
4.1横支管的计算    37
4.2立管计算    41
4.3排出管计算    41
4.4集水坑及提升泵计算选型    42
4.4.1地下室车库集水坑计算    42
4.4.2水泵房集水坑及提升泵计算选型    43
4.5化粪池设计计算    44
五、建筑雨水排水系统的设计与计算    46
5.1降雨强度    46
5.2设计秒流量    47
5.3雨水斗选用    49
六、室外排水系统的设计与计算    51
6.1室外雨水管网计算    51
6.2室外污水管网计算    52
参考文献    53
谢辞    55
