某总部综合办公楼给排水设计(含CAD图)

来源:56doc.com  资料编号:5D25154 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D25154
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

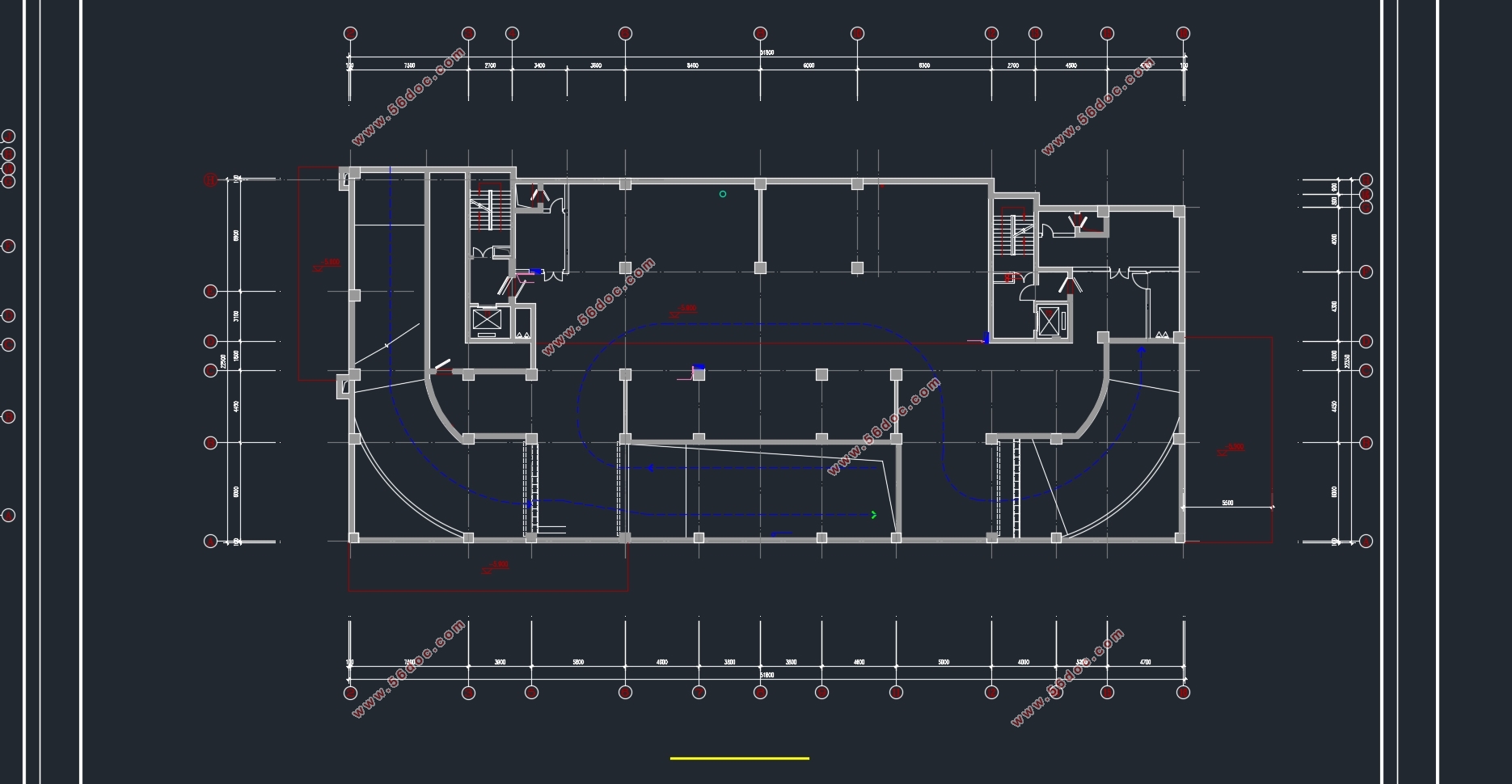

某总部综合办公楼给排水设计(含CAD图)(任务书,开题报告,论文计算书22000字,CAD图纸23张)
摘    要
给水系统分区供水,从市政管网上接一根DN100的引入管,负一层至地上三层为市政管网直供,四至十二层采用无负压变频供水设备加压供水。消防水池采用钢筋混凝土结构,置于地下室泵房外侧,有效容积168立方。建筑室内排水采用污、废水分流制,室外排水采用污废合流制,排入检查井后,经化粪池处理再排入市政污水管。卫生间采用多设立管形式,采用专用通气立管。地下室排水经排水沟汇集排至集水坑,经潜污泵提升排至检查井。雨水经屋面雨水斗收集后由雨水管排至检查井。
根据规范,该建筑为二类高层建筑,室外消火栓用水量40L/s,室内消火栓用水量20L/s,火灾延续时间2h。消火栓充实水柱高度12m,水龙带长度25m,水枪喷嘴流量5.16L/s,消防立管管径为DN100。在屋顶层设试验消火栓一个,每个室内消火栓箱内均设有远距离启动消防泵的按钮。
该建筑采用湿式自动喷水灭火系统,喷淋系统设计流量40L/s。报警阀设于地下室泵房内,各层均设水流指示器、末端试水装置和信号阀,其信号均送入消防控制中心进行处理。本工程的自动喷水灭火系统分3个区。选用箱泵一体化消防增压稳压设备(包含18立方米消防水箱)贮存火灾初期10min自动喷水灭火系统、室内消火栓系统用水量,初期灭火由水箱供水,后期灭火由地下室的消防水泵和喷淋泵供水。
关键词:给水系统、排水系统、消火栓系统、自动喷水灭火系统、雨水系统

Abstract
Water supply system water, from municipal pipe network pick a service pipe DN100, minus one to five floors for the direct supply of municipal pipe network, six to ten layers with no negative-pressure variable-frequency water supply equipment pressurized water DN65 pipe for air conditioner for computer room and reserved water. Fire pool used for reinforced concrete structures placed in basement pumping station outside the effective volume 432 cubic. Construction indoor drainage-diversion of sewage, waste water, an outdoor drainage sewage waste combined, after discharged into the manhole, septic tank treatment and then discharged into municipal sewers. Toilet multi-established forms, special ventilation risers, some additional loop vent. Basement drainage flow sewer collection to sump, submersible sewage pump lifting flows into the inspection Chamber. For the whole glass curtain wall building facades, internal drainage, select half-pressure of gravity flow systems, rainwater flow roof rainwater collected by the rain water pipe to manhole.
According to the specifications, the building two high-rise construction, outdoor fire hydrant water 20L/s, 30L/s fire hydrant water consumption, fire life 2h. 12m fire hydrant full water column height, hose length 25m, 5.16L/s water gun nozzle flow, fire the riser tube diameter DN100. Set up a test fire hydrants in roofing, each fire hydrant boxes are equipped with remote start button for fire pump.
Wet automatic fire sprinkler system in the building, spraying system design flow 40L/s. The alarm valve located on the pump room in the basement, the floors are located water flow indicator, test water device and signal the valve at the end, its signal is fed into the fire control centre for processing. Sprinkler system the project divided into 3 zones. Selection box-pump fire booster regulator device integration (including 18 cubic metres of fire water tank) storage initial 10min sprinkler system for fire water, indoor fire hydrant system, initial fire-fighting water tank water supply, late extinguishing the fire pump and sprinkler pumps water from the basement
Keyword: water-supply system、drainage system、hydrant system、automatic sprinkler system、rainwater system

一、工程概况
某总部办公综合楼主体建筑为十五层,地下二层、一层为汽车库,夹层为自行车库,地上一到三层为综合大厅,四到十二层为研究室。
市政自来水压力约为: 0.25MPa。
(1)给水水源
     本建筑以城市给水管网作为水源,从西侧的市政管网取水,供水水压为0.25MPa。室外消防给水可通过市政管网提供。
(2)排水条件
建筑采用分流排水体制,污水可直接排入城市排水管网集中送至污水处理厂。


某总部综合办公楼给排水设计(含CAD图)
某总部综合办公楼给排水设计(含CAD图)
某总部综合办公楼给排水设计(含CAD图)


目  录
第一章  设计说明书
一、给水系统    8
1.1给水方案    8
1.1.1方案选择    8
1.1.2方案选择依据    9
1.2给水系统组成    10
1.3给水管道的布置与敷设    10
二、消防系统    11
2.1室内消火栓系统    11
2.1.1室内消火栓系统的选择    11
2.1.2系统组成    12
2.1.3设备及构筑物    12
2.1.4消火栓的安装    12
2.2自动喷淋系统    12
2.2.1室内自动喷水灭火系统的选择    12
2.2.2系统组成    13
2.2.3喷头的选择与布置    13
2.2.4设备及构筑物    14
2.2.5喷淋系统的安装    14
三、室内排水系统    14
3.1系统选择    14
3.2系统组成    15
3.3主要设备及构筑物    15
3.4排水管道安装要求    15
四、雨水系统    16
4.1雨水排水系统的选择    16
4.2雨水排水系统的组成    16
4.3雨水管道的敷设与布置    16
第二章  设计计算书
一、给水系统计算    17
1.1生活用水量计算    17
1.2设计计算依据    17
1.3设计计算    18
1.4设计秒流量的确定    18
1.5水表的选择    18
1.6生活给水系统水力计算    19
1.6.1设计依据    19
1.6.2卫生间给水水力计算    23
1.6.3低区水力计算    25
1.6.4高区水力计算    26
1.7地下室生活水泵的选择    26
1.8低区给水系统所需压力校核    23
二、室内排水系统的设计与计算    24
2.1横支管的计算    24
2.2立管计算    26
22.3排出管计算    26
2.4集水坑及提升泵计算选型    26
    2.4.1地下室车库集水坑计算    26
    2.4.2消防电梯集水坑及提升泵计算选型      27
    2.4.3水泵房集水坑及提升泵计算选型    27
    2.4.4汽车坡道集水坑及提升泵计算选型    28
    2.5化粪池设计计算    54
三、室内消火栓给水系统的计算    29
3.1消防水池    29
3.1.1消防水池的设置    29
3.1.2体积计算    29
3.2屋顶消防水箱    30
3.3消火栓保护半径    30
3.4消火栓布置间距    30
3.5消火栓的确定    31
3.6消火栓的水力计算    31
3.7水泵接合器选定    31
3.8消火栓减压计算    32
3.9室外消火栓的设置    33
四、自动喷水灭火系统    36
4.1自动喷淋灭火系统的基本数据    36
4.2管道与报警阀布置    36
4.3喷头的选用与布置    36
4.4系统的设计流量    36
4.5水力计算(特性系数法)    36
    4.5.1  三层及以上最不利点喷头比较计算    36
    4.5.2  二层最不利点喷头比较计算    44
    4.5.3  一层最不利点喷头比较计算    47
    4.5.4  地下室最不利点喷头计算    49
4.6报警阀的压力损失    50
4.7选泵计算    50
4.8水泵接合器    52
4.9喷淋减压孔板计算    53
五、建筑雨水排水系统的设计与计算    53
5.1降雨强度    53
5.2汇水面积    53
5.3设计秒流量    54
5.4雨水斗选用    56
5.5连接管计算    56
5.6悬吊管计算    56
5.7立管计算    57
5.8排出管计算    57
六、室外排水系统的设计与计算    58
6.1室外雨水管网计算    58
6.2室外污水管网计算    58
参考文献    60
结语    61
谢辞    63
