基于单片机的无线胎压监测系统的设计(附实物图,原理图,PCB图)(论文11000字)
摘要：随着生活水平的提高，汽车渐渐成为生活常用品，随之而来的行车安全隐患问题也得到了关注。近年来，随着微电子、计算机、自动控制、传感器等技术的发展，自动化技术被越来越广泛的应用在许多传统行业。无线传输技术是一种成本低廉，实时简便的新型技术，将无线传输技术应用在胎压监测系统中能够进一步提高系统的灵活性。本文立足于此现状，完成了胎压监测系统以单片机为核心的系统设计。系统运用无线技术，结合单片机—传感器系统，设计数据采集与数据显示报警两大模块，实现轮胎状态的监测与报警。
本文借鉴多种产业领域中的自动化方案，结合NRF24l01无线传输模块，设计基于微处理器的胎压监测系统。利用单片机结合温度传感器、压力变送器对轮胎的温度和气压进行检测并传至驾驶室主机，驾驶室主机接收到信息后通过LCD进行显示，对信息的是否异常做出判断和报警提示。
关键词：单片机；胎压；NRF24l01；温度传感器；压力变送器
Wireless tire pressure monitoring system based on single chip microcomputer
Abstract:Vehicles is the most important means of transport. In recent years, every year a large number of cars in the manufacture and put into use, and the pace of manufacturing is still accelerating. The increase of vehicles, the frequency of traffic accidents caused by more and more high, which because of vehicle tires burst caused by the largest proportion of traffic accidents, so early detection of abnormal tire pressure tires to reduce the probability of vehicle tire failure to improve the car Of the driving safety is of great significance. In recent years, with the development of microelectronics, computers, automatic control, sensors and other technologies, automation technology is more and more widely used in many traditional industries, completely changed the traditional mode of production. More and more engineers and scholars have applied the new technology in the control system,
In this paper, a variety of industries in the field of automation solutions, combined with NRF24l01 wireless transmission module, based on microprocessor-based tire pressure monitoring system design. The temperature and pressure of the tire are detected and transmitted to the host computer by the MCU and the temperature transmitter and the pressure transmitter. The host computer receives the information and displays it through the LCD, and makes judgments and warnings on whether the information is abnormal.
Key words:MCU; tire pressure; NRF24l01; temperature sensor; pressure transmitter
目录
第1章 绪论 4
1.1研究背景与意义与国内外研究现状 4
1.2 单片机在各领域的应用 4
1.3 本文主要工作与章节安排 6
第2章 系统总体方案设计及芯片选型 7
2.1系统总体方案 7
2.2主控制器选型 7
2.2压力传感器选型 8
2.3 AD模块选型 8
2.4温度传感器选型 9
第3章 系统硬件设计 11
3.1系统硬件总体设计 11
3.2单片机最小系统 11
3.3电源电路 13
3.4信号调理与AD采样 13
3.5按键与LED电路 14
3.6 LCD显示电路 14
3.7温度传感器电路 15
第4章 系统软件设计 17

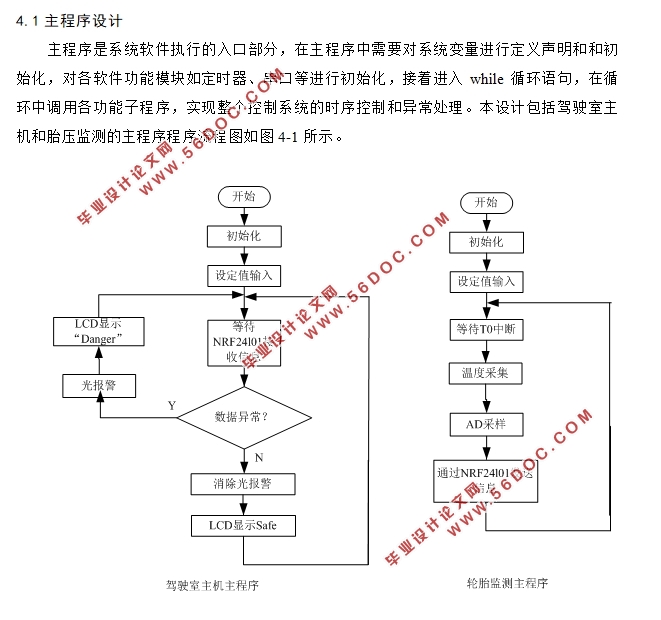

4.1主程序设计 17
4.2 AD采样子程序设计 17
4.3 液晶显示子程序设计 19
第5章 实验结果 23
第6章 总结与展望 27
参考文献 28
|
