基于码盘转速测量系统的毕业设计

基于码盘转速测量系统的毕业设计(11600字)
摘  要
在控制领域中,经常需要进行各种角度、位移量的测量。当前，世界上正面临着一场新的技术革命，这场革命的重要基础之一就是测量技术。测量技术的发展给人类社会和国民经济的各个部门及各个领域带来了巨大的、广泛的、深刻的变化，带动着传统工业和其他新兴产业的更新和变革，是当今人类社会发展的强大动力。

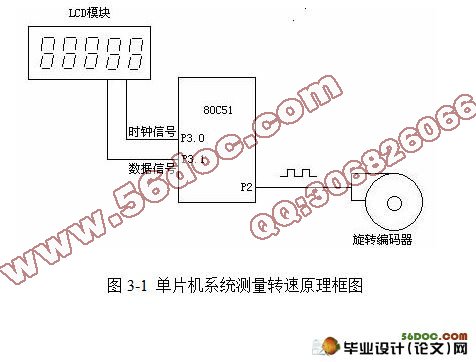

本设计为码盘转速测量系统，用来测量来自外部的不同的转速值。实现转速的实时测量，显示。具体应用AT80C51单片机为核心，旋转编码器实时轴转速测量，同时以八位串行段码式LCD显示模块显示。旋转编码器输出4.25V，8位二进制自然码送入单片机处理经过计算处理，再查表转换为10进制数，送LCD模块显示。
本文从转速测量原理入手，详细阐述了转速测量系统的工作过程，以及硬件电路的设计、显示效果。本文吸收了硬件软件化的思想，实现了题目要求的功能。
关键词：转速测量，旋转编码器，单片机，LCD显示模块

Abstract

In the control field, a variety of angles and displacement measurements often need to be carried out. At present, the world is facing a new technological revolution; one of the most important bases of the revolution is measurement. The development of measurement technology brings extensive，tremendous and profound changes to human society and all sectors of the national economy, changes the traditional industries and other emerging industries, becomes today's strongest driving force for development of human society .
The encoder speed measurement system is designed to measure a different speed from the outside values，to achieve real-time speed measurement and display. Specific application use AT80C51 microcontroller as its core, rotary encoder measures real-time shaft speed, in both 8 serial Segment type LCD display module display. Rotary encoder output a 4.25V, 8-bit binary natural code into the MCU processed and computed, and then look-up table converts to 10 decimal number, sent to LCD display module.
In this paper, detailed working process of speed measurement system is started with principle of speed measurement, and hardware circuit design and display. This paper has absorbed the idea of hardware and software to achieve with the subject required functionality.

Key words: rotational speed measurement, rotary encoder, microcontroller, LCD display module



目    录
第一章    绪论    1
1.1国内外转速测量技术简介    1
第二章    原理说明及方案选择    2
2.1 转速测量理论的简要介绍    2
2.2 方案选择    3
2.3 方案原理    3
2.4 转速测量参数及电路参数分析    4
2.4.1MCS-51的定时器/计数器简介    4
2.4.2定时器模式选择位    5
第三章    硬件电路的设计    7
3.1 单片机的选择    7
3.1.1 80C51的介绍    10
3.2 旋转编码器的选择    13
3.2.1 PALD6615-256-C05E简介    13
3.2.2 PALD6615-256-C05E编码器的应用    14
第四章    显示部分    15
4.1 LED显示器    15
4.2 LCD显示器    15
4.2.1 LCD的分类及特点    15
4.2.1笔段式LCD液晶显示器的驱动    15
4.2.2 LCD显示模块LCDM（Liquid Crystal Display Module）    15
4.3 LCD显示器的驱动接口    17
结论    19
谢辞    20
参考文献    21

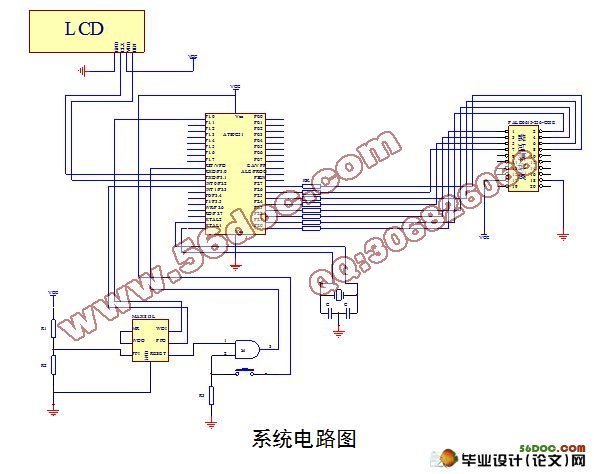

附录一  系统电路图    22

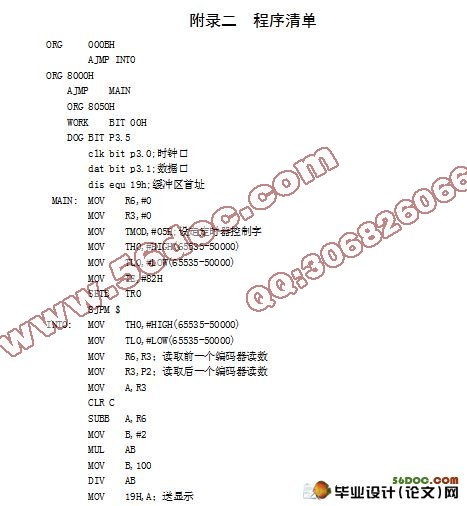

附录二  程序清单    23
