混凝土搅拌机机械部分设计(含cad零件图,装配图)

来源:56doc.com  资料编号:5D6468 资料等级:★★★★★ %E8%B5%84%E6%96%99%E7%BC%96%E5%8F%B7%EF%BC%9A5D6468
资料以网页介绍的为准,下载后不会有水印.资料仅供学习参考之用. 帮助
资料介绍

混凝土搅拌机机械部分设计(含cad零件图,装配图)(含选题审批表,任务书,开题报告,中期检查表,论文说明书16000字,CAD图纸10张)
摘 要:混凝土搅拌机是施工机械装备中的重要设备,其产品质量和生产效率直接影响着建筑施工质量和建筑施工进度。强制式搅拌机是应用最普遍、使用率最高的混凝土搅拌机。双卧轴搅拌机是新型搅拌机型,因其搅拌质量好,生产率高,被广泛用于各种搅拌场合。本毕业设计从搅拌的目的和机理出发。工作时,物料在叶片推动下沿螺旋面移动,由于两轴的旋转方向相反,两轴间的物料产生挤压、翻滚和揉搓,以达到搅拌混合效果。通过对卧轴式搅拌机的叶片结构和曲面形状进行合理的布置和设计,混凝土的质量和生产效率会有很大的提高。
关键词:混凝土搅拌机;双卧轴; 叶片

Design of Double Horizontal Concrete Mixer’s Mechanical Parts
Abstract:Concrete mixer is the key device of construction machinery and equipment. It has product quality and production efficiency, which directly impacts on the construction quality and progress of construction. Compulsory mixer is the most common and the highest utilization rate of concrete mixers.Double horizontal shaft mixer is a new-style mixer, which is widely used in many conditions because of the high mixing quality and productivity.This paper begins with the mechanism and purpose of mixing. The materials leaves along the spiral of mobile on the work. Because of the two axis of rotation opposite direction, the materials between the two axis produces extrusion rolling and scrubbing, in order to meet the stirring mixed effect. It has been proved in the long-term production, through the horizontal Coaxial mixer surface of the leaf structure and shape of a reasonable layout and design, concrete’s quality and production efficiency will be greatly improved.
Key words: concrete mixer; double horizontal ;shaft

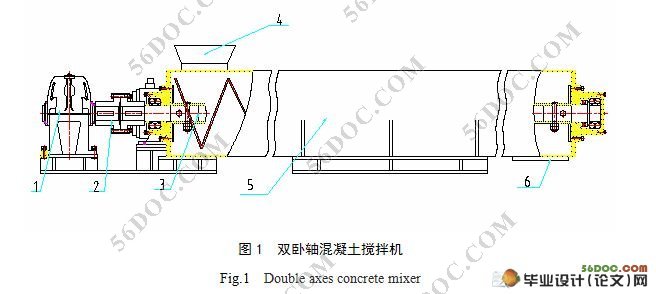

混凝土搅拌机机械部分设计(含cad零件图,装配图)

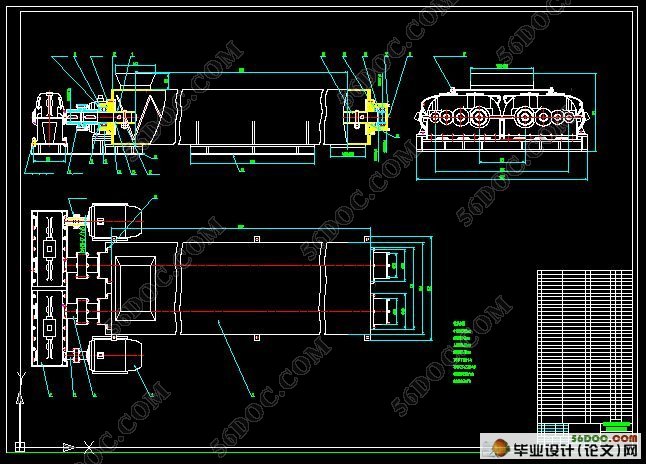

混凝土搅拌机机械部分设计(含cad零件图,装配图)

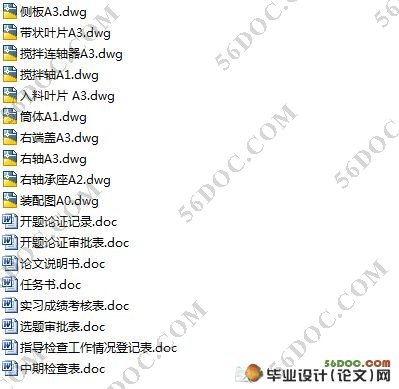

混凝土搅拌机机械部分设计(含cad零件图,装配图)
